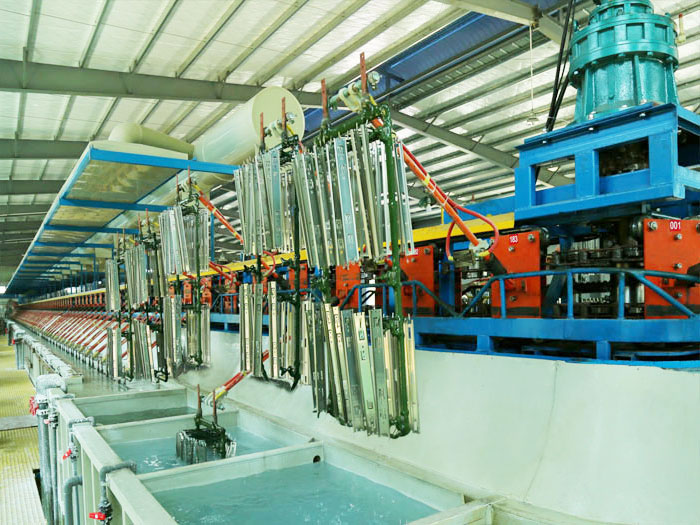

Single-Arm Barrel Plating Production Line has multiple core functions during operation, which collectively improve electroplating efficiency, quality, as well as the convenience and safety of operation. The details are as follows:
I. Efficient and Flexible Electroplating Operation Capacity
The single-arm barrel plating production line realizes integrated operation of multiple electroplating tanks through a retractable and rotatable single-arm structure. The single arm can carry multiple electroplating tanks, each loaded with different electroplating solutions, supporting simultaneous execution of multiple electroplating processes (such as nickel plating, tin plating, gold plating, etc.). This design enables the production line to quickly switch electroplating types, adapt to processing requirements of different materials, and significantly improve production efficiency. For example, in the electroplating of electronic components, multiple layers of plating such as copper plating, nickel plating and gold plating can be completed at one time, reducing intermediate transfer links.
II. Precise Process Control Function
Dynamic Parameter Adjustment: Through control systems such as PLC frequency converters and photoelectric switches, the single-arm barrel plating production line can accurately control the telescopic and rotation speed as well as positioning accuracy of the single arm, ensuring the relative position between the electroplating tank and the workpiece is error-free. For example, in coating thickness control, by adjusting the drum rotation speed (usually 6-10 revolutions per minute) and current density, crystal nucleus refinement and bonding force optimization can be achieved, reducing porosity and improving coating uniformity.
Automated Process Management: Some production lines are equipped with screen display and touch screen control interfaces, supporting presetting and real-time monitoring of process parameters. Operators can set parameters such as electroplating time, temperature and current, and the system automatically executes and records data, reducing errors caused by manual intervention and improving batch consistency.
III. Safe and Reliable Operation Guarantee Mechanism
Multiple Safety Protections: Aiming at potential risks during electroplating, the production line is designed with safety devices such as anti-empty grabbing, anti-double feeding, anti-reverse belt and anti-over-limit protection to avoid accidents caused by equipment failures or operational errors. For example, during drum lifting, if overload or position deviation is detected, the system will immediately trigger an emergency stop mechanism to prevent mechanical collision or electroplating solution leakage.
Stable Structure and Materials: The walking horizontal wheels are made of polyurethane material to ensure stable and non-slip movement of the single arm; the flat cable, sliding trolley and slide rail design reduce line wear; the high-strength acid and alkali resistant belt lifting system reduces the risk of oil pollution. The drum is usually made of PP, PVC plates or die-cast materials, with strong corrosion resistance, extending the service life of the equipment.
IV. Environmental Protection and Resource Conservation Functions
Waste Liquid Recycling: Some single-arm barrel plating production lines integrate an electroplating solution recovery system, which purifies the electroplating solution through processes such as filtration and precipitation to realize recycling. For example, in the nickel plating process, the recovery system can separate nickel ions from impurities, reducing nickel salt consumption and production costs.
Waste Gas Treatment Device: Aiming at acidic or alkaline waste gas generated during electroplating, the production line is equipped with an efficient acid mist purification system, which removes harmful gases through spraying, adsorption and other methods, ensuring emissions meet environmental protection standards and reducing harm to operators and the environment.
V. Customizable and Scalable Design
Modular Structure: The single-arm barrel plating production line can be custom-designed according to the customer's factory space, product characteristics and production capacity requirements. For example, tank dimensions (e.g., 600mm high × 850mm wide), drum specifications (e.g., 320mm diameter × 250mm length) and aperture size (e.g., 0.3mm) can all be adjusted to adapt to the processing of workpieces of different sizes.
Compatibility with Multiple Transmission Modes: Drum rotation transmission supports whole-line chain transmission or transmission shaft transmission, and the appropriate mode can be selected according to electroplating process requirements. For example, in high-speed electroplating, chain transmission can provide more stable power transmission; while in precision electroplating, transmission shaft transmission can reduce vibration and improve coating quality.
